Product Information

Switch	Oil King Switch
Type	Linear
Operation Force	55±5 gf
Pre Travel	2.0±0.6 mm
Total Travel	4.0 mm Max.
Spring	20 mm
Sound Level	Low
Operation Life	Up to 60M cycles
Suitable For	Gaming/Office
Finger Strike Feeling	Vertical, strong pressing force, hard rebound
Stem	POM, MX stem
Upper Housing	Nylon PA66
Housing Base	Proprietary "INK" blend
Spring	Spring steel
Pins	5-Pin switch
Lubrication	Lubed version
SMD LED Support	Yes (only support unraised SMD-LED)

Linear Typing Feel

The Oil King switch is the newest mechanical linear switch that features a Nylon PA66 upper housing, a housing base made of secret black Ink housing material, and a POM stem. The stem in the upper housing is fantastic with ultra-stability and almost no wobbliness. Compared to CJs, it has a deeper patch sound.

Gold Contact

The gold contact improves anti-oxidation performance and protects the key switch from corrosion, guaranteeing the switch will last for up to 60 million cycles.

Black Plated Spring

The Oil King switch incorporates a long 20mm black plated spring allowing for 55g actuation and 80g bottom-out weight, creating a rather unique and super-smooth typing feeling.

Factory Pre-Lubed

It is pre-lubed in the factory to help avoid spring ping and unnecessary friction and hitches.

Compatible Keyboards

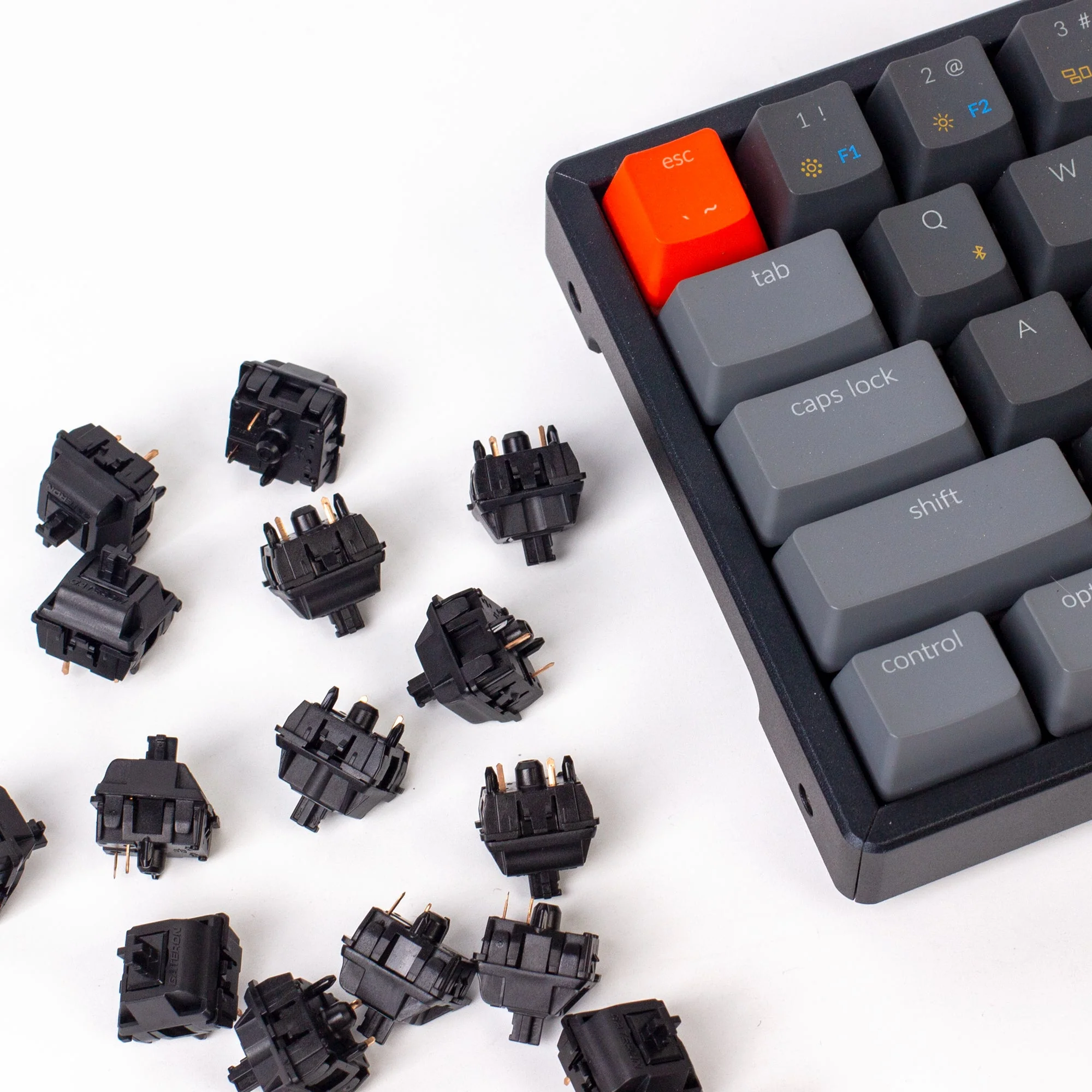

Compatible with 5-Pin MX mechanical (hot-swappable) keyboards with 2-Pin LED/4-Pin LED, or RGB-SMD lights that are not raised.

Notice: Due to the housing design of the Gateron Oil King switches, the backlight effect will not be that visible.
